org.freehep.j3d
Class SphereSegment

java.lang.Object
  javax.media.j3d.SceneGraphObject
      javax.media.j3d.Node
          javax.media.j3d.Leaf
              javax.media.j3d.Shape3D
                  org.freehep.j3d.Solid
                      org.freehep.j3d.SphereSegment

Direct Known Subclasses:

G4Sphere

public class SphereSegment

extends Solid

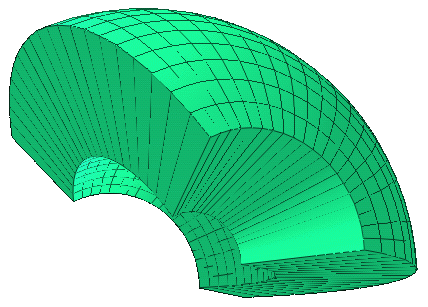

General Sphere Segment. All angles are in degrees.

Version:

1.1.0

Author:

J.Hrivnac

Source Code:

SphereSegment.java

Field Summary

Fields inherited from class javax.media.j3d.Shape3D

ALLOW_APPEARANCE_OVERRIDE_READ, ALLOW_APPEARANCE_OVERRIDE_WRITE, ALLOW_APPEARANCE_READ, ALLOW_APPEARANCE_WRITE, ALLOW_COLLISION_BOUNDS_READ, ALLOW_COLLISION_BOUNDS_WRITE, ALLOW_GEOMETRY_READ, ALLOW_GEOMETRY_WRITE

Fields inherited from class javax.media.j3d.Node

ALLOW_AUTO_COMPUTE_BOUNDS_READ, ALLOW_AUTO_COMPUTE_BOUNDS_WRITE, ALLOW_BOUNDS_READ, ALLOW_BOUNDS_WRITE, ALLOW_COLLIDABLE_READ, ALLOW_COLLIDABLE_WRITE, ALLOW_LOCAL_TO_VWORLD_READ, ALLOW_PICKABLE_READ, ALLOW_PICKABLE_WRITE, ENABLE_COLLISION_REPORTING, ENABLE_PICK_REPORTING

Constructor Summary

SphereSegment(double rmin, double rmax, double phimin, double phimax, double thetamin, double thetamax, int granularity, javax.media.j3d.Appearance appearance)
Create general sphere segment.

SphereSegment(double r, int granularity, javax.media.j3d.Appearance appearance)
Create full sphere.

Methods inherited from class org.freehep.j3d.Solid

addCoordinates

Methods inherited from class javax.media.j3d.Shape3D

addGeometry, cloneNode, duplicateNode, getAllGeometries, getAppearance, getAppearanceOverrideEnable, getBounds, getCollisionBounds, getGeometry, getGeometry, indexOfGeometry, insertGeometry, intersect, intersect, intersect, numGeometries, removeAllGeometries, removeGeometry, removeGeometry, setAppearance, setAppearanceOverrideEnable, setCollisionBounds, setGeometry, setGeometry

Methods inherited from class javax.media.j3d.Node

cloneTree, cloneTree, cloneTree, cloneTree, cloneTree, cloneTree, getBoundsAutoCompute, getCollidable, getLocalToVworld, getLocalToVworld, getParent, getPickable, setBounds, setBoundsAutoCompute, setCollidable, setPickable

Methods inherited from class javax.media.j3d.SceneGraphObject

clearCapability, clearCapabilityIsFrequent, duplicateSceneGraphObject, getCapability, getCapabilityIsFrequent, getUserData, isCompiled, isLive, setCapability, setCapabilityIsFrequent, setUserData, updateNodeReferences

Methods inherited from class java.lang.Object

clone, equals, finalize, getClass, hashCode, notify, notifyAll, toString, wait, wait, wait

Constructor Detail

SphereSegment

public SphereSegment(double rmin,
                     double rmax,
                     double phimin,
                     double phimax,
                     double thetamin,
                     double thetamax,
                     int granularity,
                     javax.media.j3d.Appearance appearance)

Create general sphere segment.

Parameters:

rmin - inner radius

rmax - outer radius

phimin - starting azimutal angle [deg]

phimax - ending azimutal angle [deg]

thetamin - starting polar angle [deg]

thetamax - ending polar angle [deg]

granularity - number of segments of curves approximations

appearance - object' Appearance

Preconditions:

phimin > 0 && phimin < 360, phimax > 0 && phimax < 360, phimin < phimax, thetamin > 0 && thetamin < 360, thetamax > 0 && thetamax < 360, thetamin < thetamax, rmin < rmax, granularity > 1

SphereSegment

public SphereSegment(double r,
                     int granularity,
                     javax.media.j3d.Appearance appearance)

Create full sphere.
